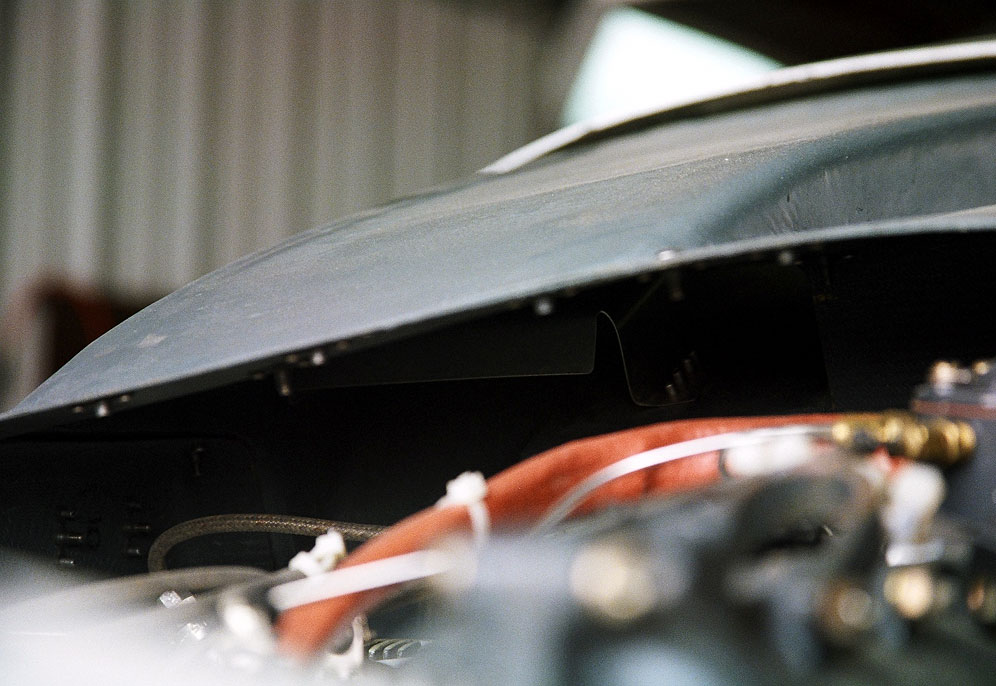

Look carefully and you can see a diverting flange located at the end of the NACA intake ducts connected to the plenum. This diverts some of the airflow over the two cylinders closest to the firewall. These two tend to run the hottest since the air flowing through the duct, not liking to deviate from a straight line, tends to blow past. The flange forces some of this flow downwards over first two cylinders.
