2006 Maintenance and Annual Condition Inspection

Previous Index Next

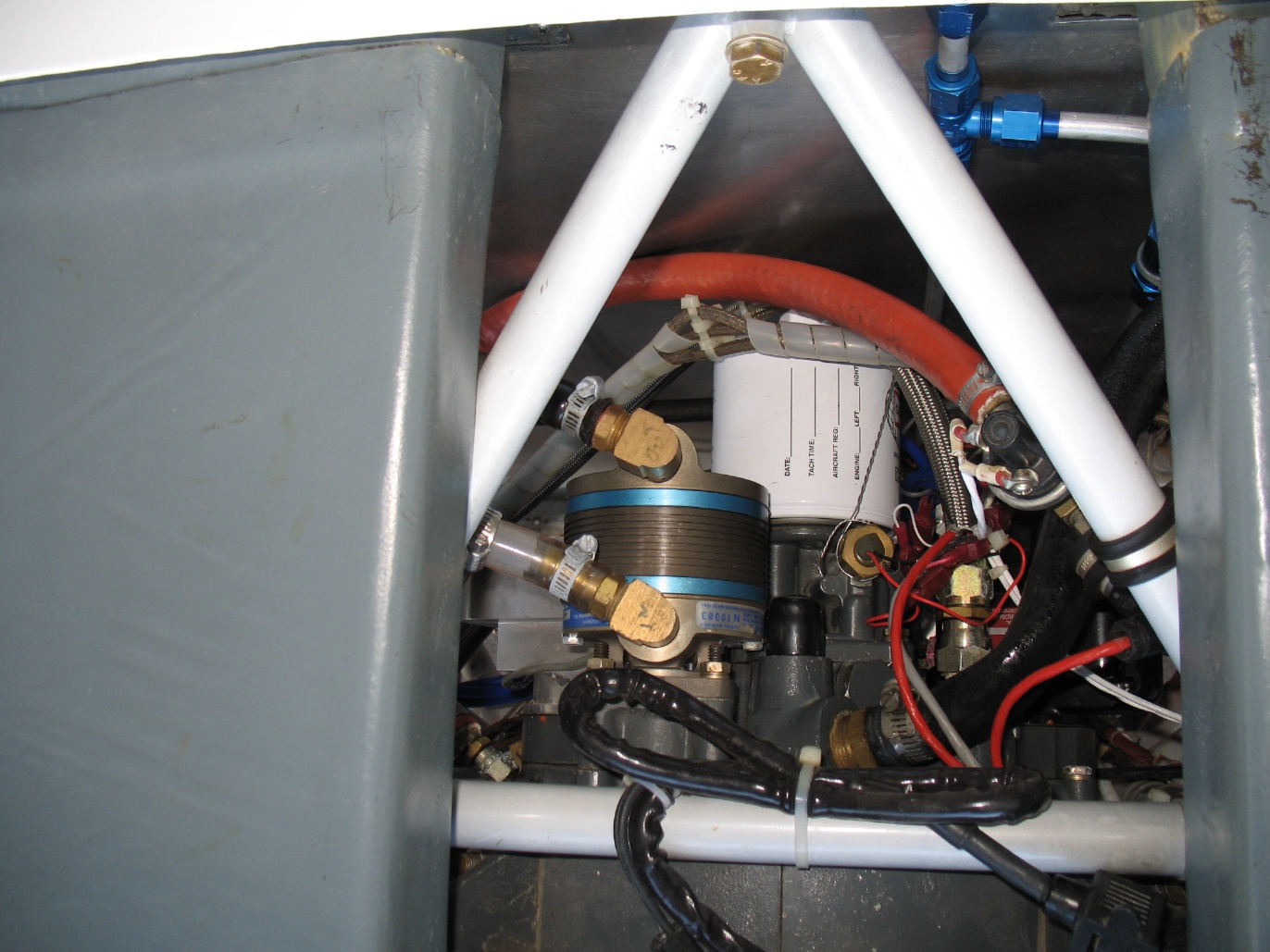

Another view from above between the NACA ducts. Firewall at top. Oil temp probe seen just below the oil filter. Large caliber black hose lower center going to right leads to oil air separator.
