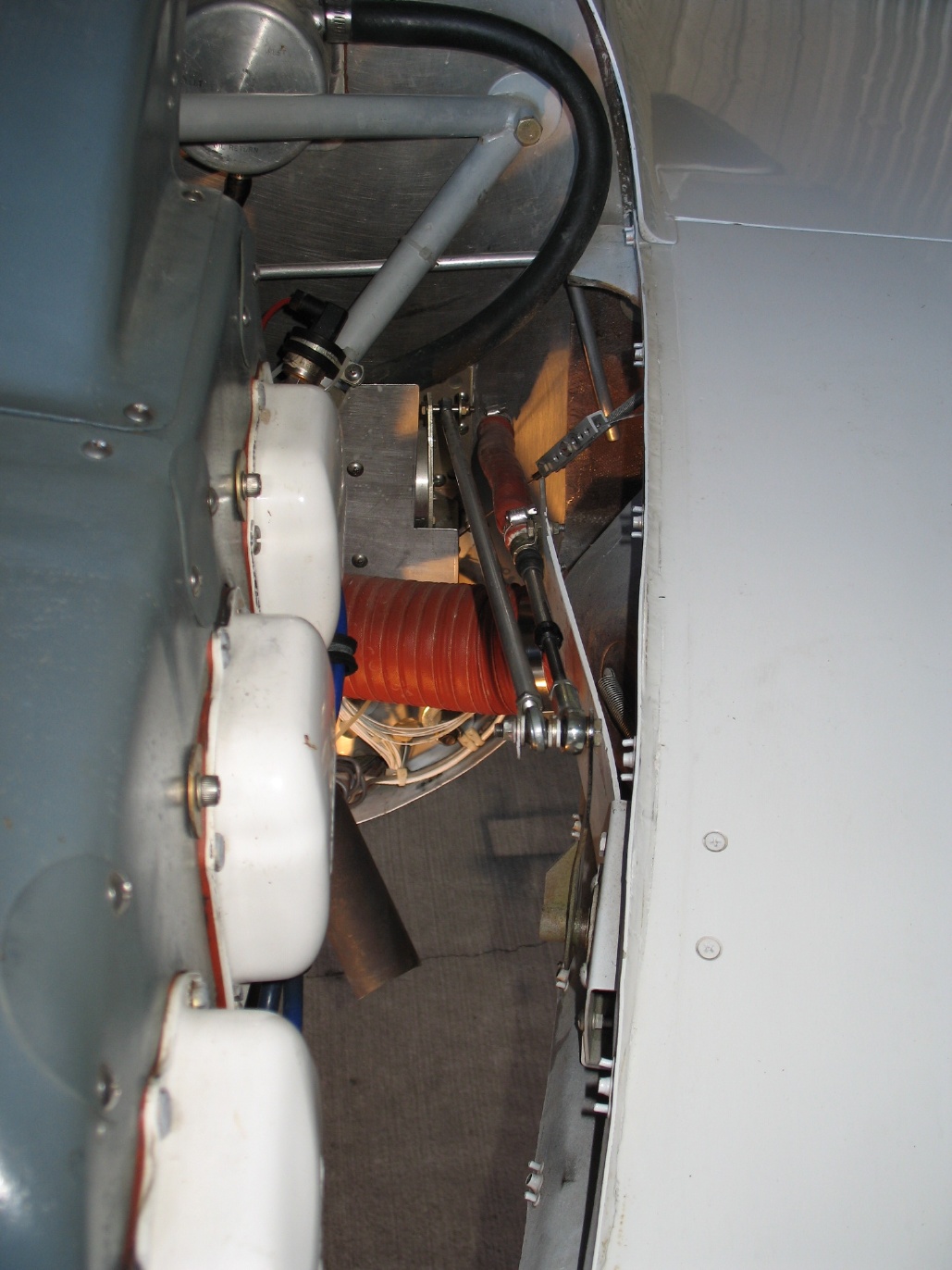

Detail of copilot side aileron bellcrank. Note push rod from S-Tec roll servo attached to assembly. The servo is behind a shield to protect it from heat.
