Cowling

Click on thumbnails to view larger versions of the pics!

Loading...
Loading...
Loading...
Loading...

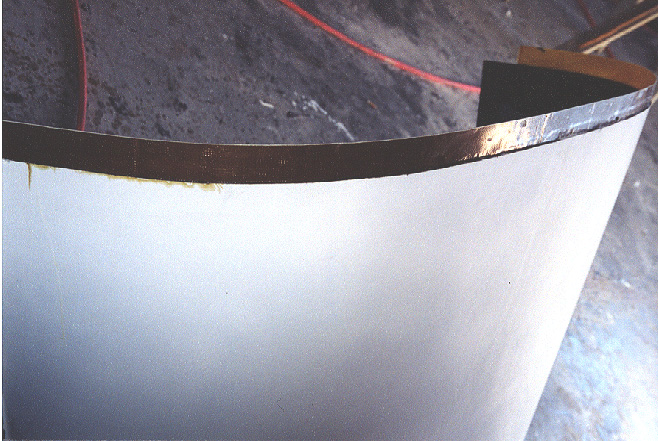

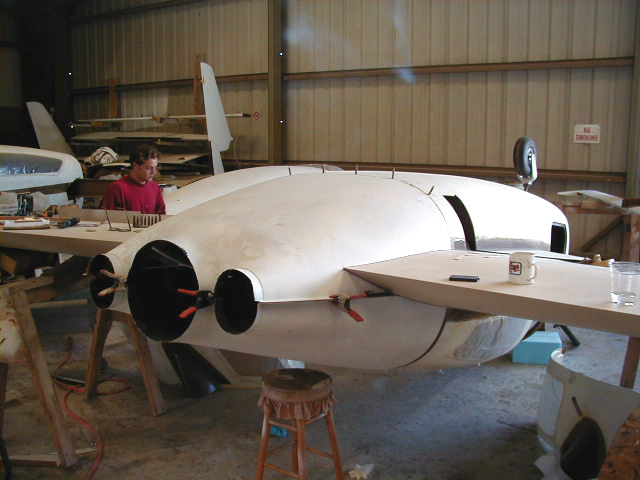

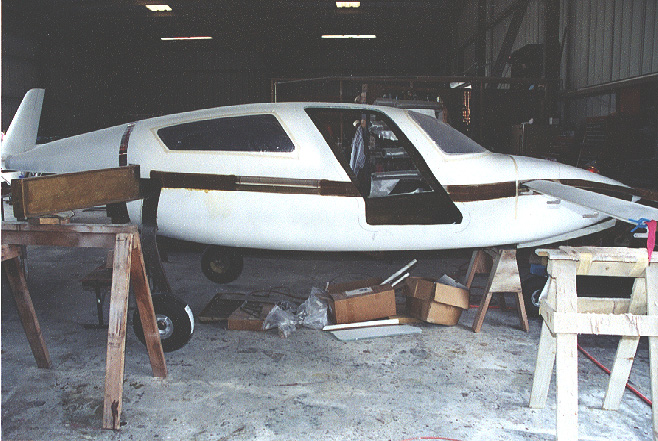

Top portion of cowling prepped for removal. Note tape holding upper portion of cowling in place for layup of flange on innner surface. Cleaning up the flange on the upper cowling. Closeup of upper cowling flange after cleanup. April 24, 2001 - Nearly completed plane undergoing final cosmetic work. Here the cowling is fitted to the wing roots.
Loading...
Loading...

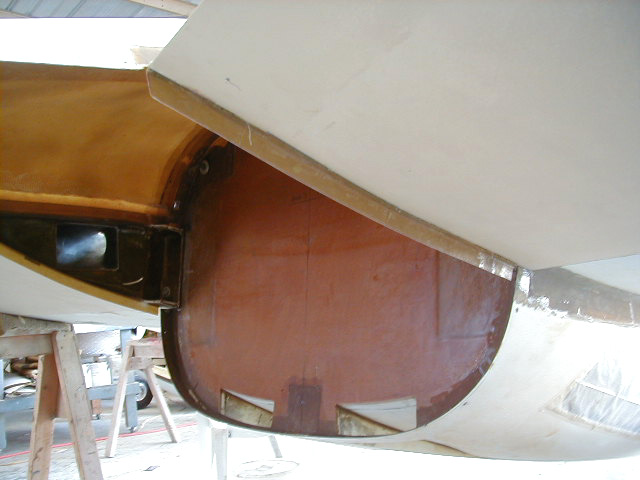

Cowling flange Another view of the cowling flange (yes, the plane is still upside down!) Note the air induction duct seen in the copilot wing root.
