August 24 on: NACA scoops being completed. The upper edges are finished with sharp edges. Note the top edge of the rear portion of the inlet is given a nice round 1/4" radiuswhich results in a 1/2" thick top aft inlet "roof".
|
|
|
|
|

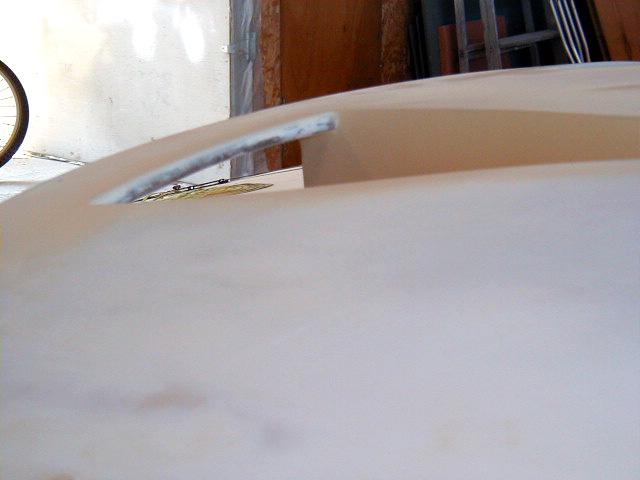

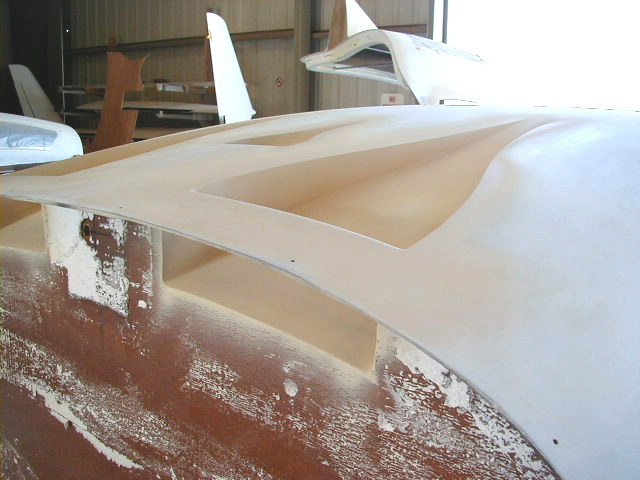

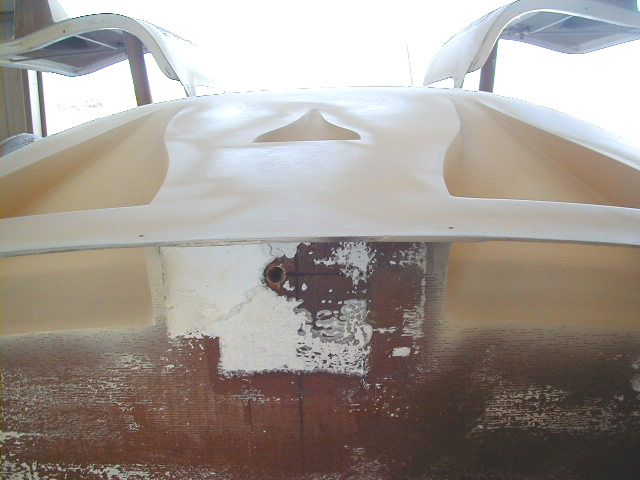

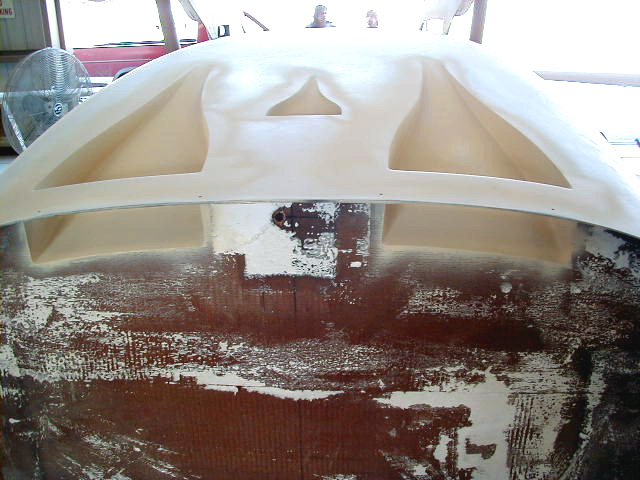

| Views from rear of aircraft showing the finished NACA scoops. | Detail of edges of inlet. | ||
|
|
|||

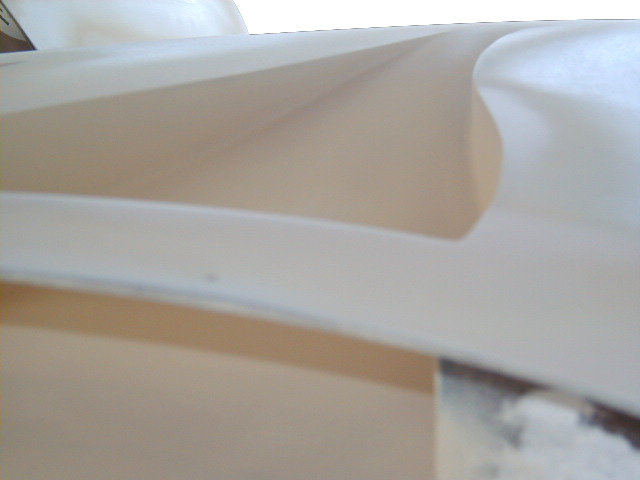

| Aft inlet "roof" with 1/4" radius. |
