2003 Maintenance and Annual Condition Inspection - PAGE 1

Previous Index Next

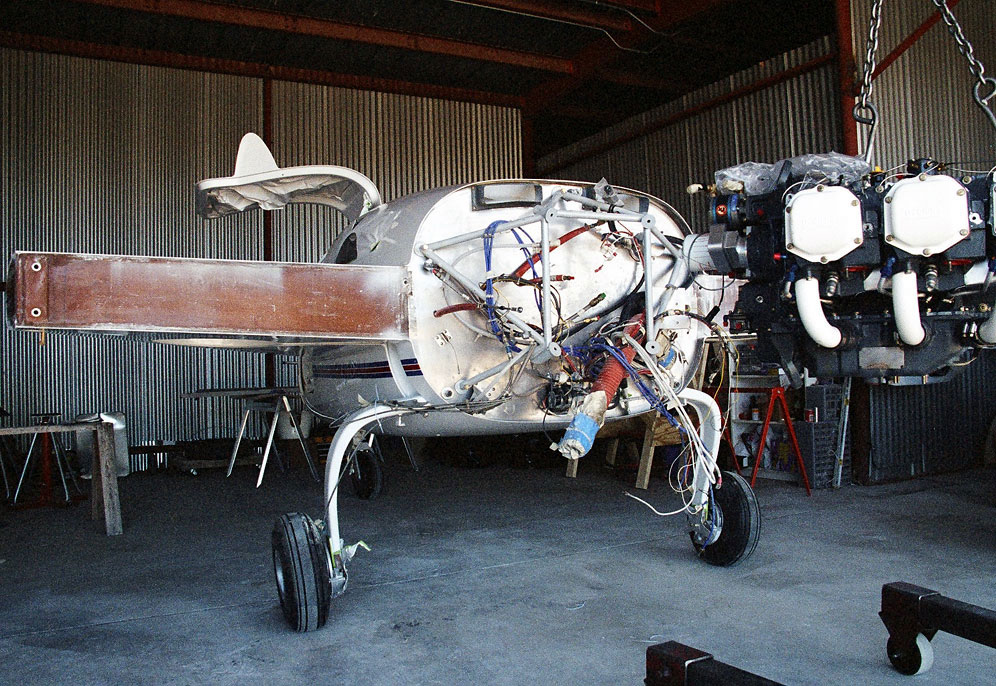

It looks like a terrible mess, but everything is as it was left, carefully labelled and ready to be reconnected. The engine is lowered into position to match the engine mount. After the Barry Mounts (part #94110-02 ) are placed in position, the engine is bolted on with AN7-27A bolts, AN970-716 washers, and AN363-720 nuts.
