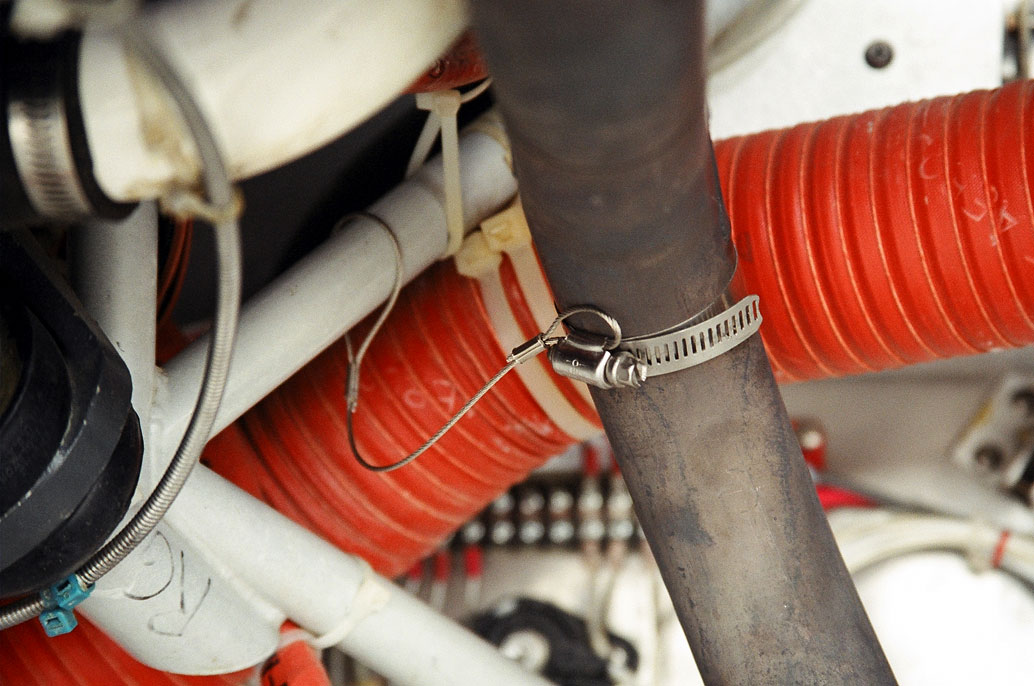

Looking up from underneath the engine, CP side. A safety wire attaches the exhaust in case it ever cracks. This should hold it in place before it falls off and goes through the prop which could lead to a suboptimal outcome. The scat tubing carries air from the air induction intake under the CP wing to engine through a filter.
