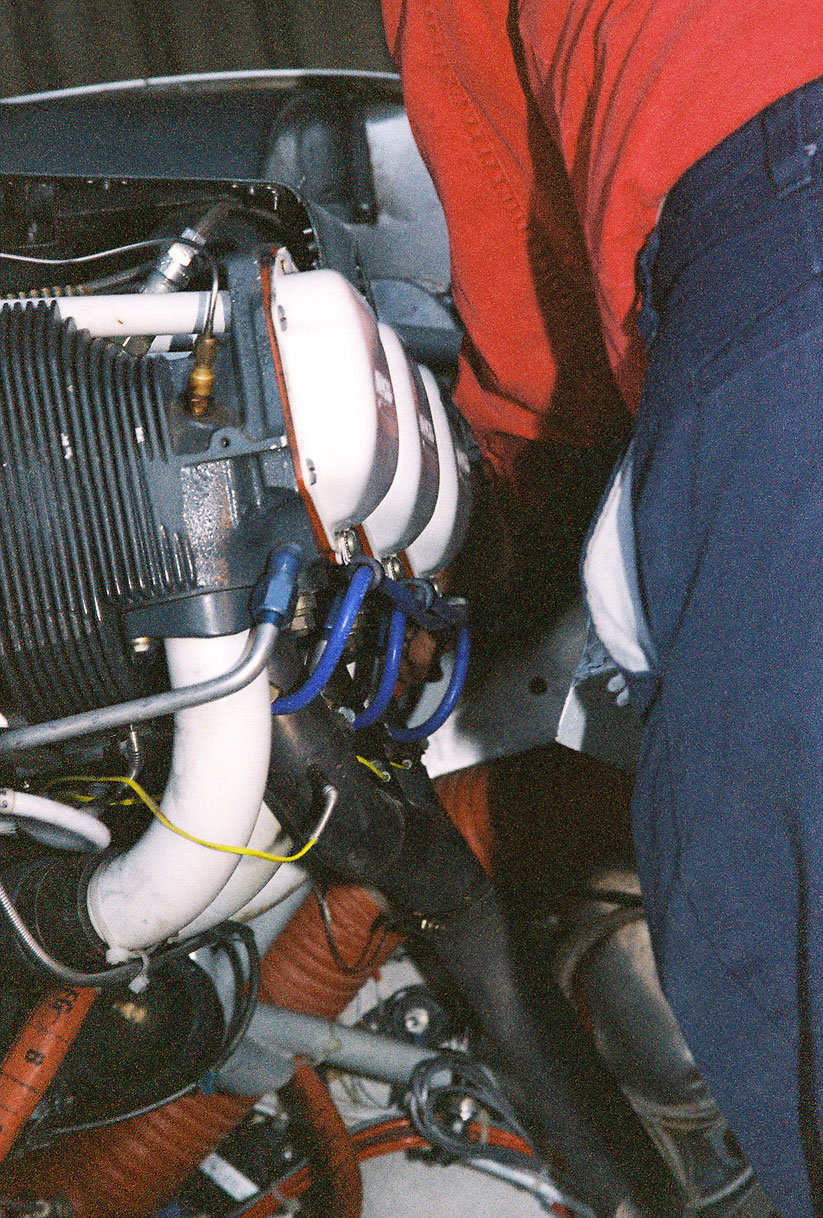

Neatened ignition cables seen. You can just see the diverting baffle inside the air duct feeding the forward portion of the plenum. This baffle diverts some of the airstream from the roof NACA inlets such that a portion of the flow is bent downwards to cool the two most forward cylinders.
