Hydraulic System

Click on thumbnails to view larger versions of the pics!

Loading...
Loading...
Loading...
Loading...

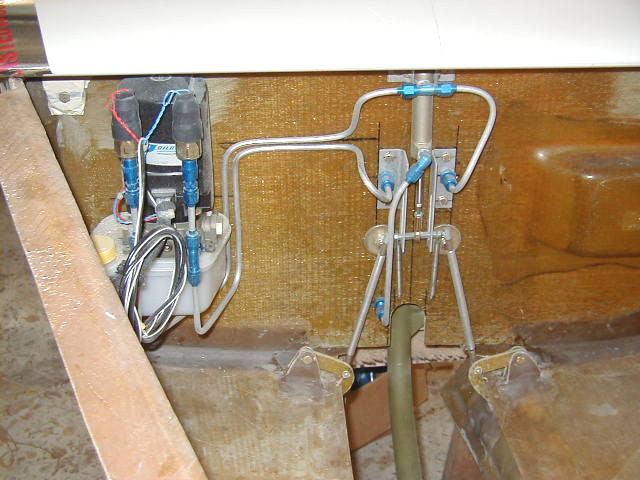

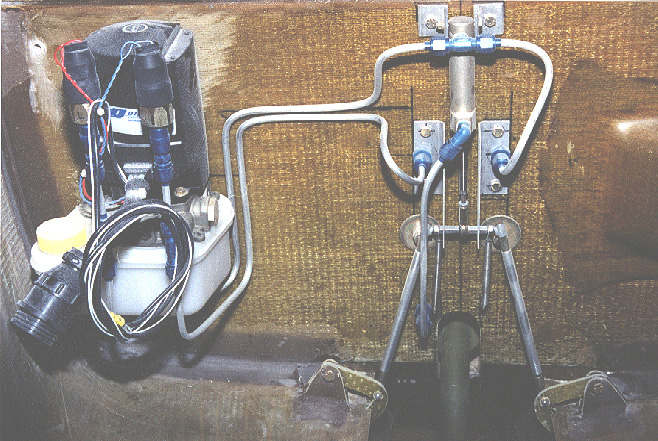

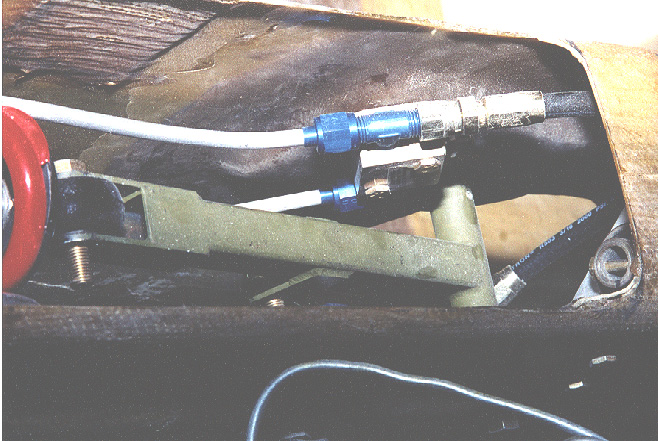

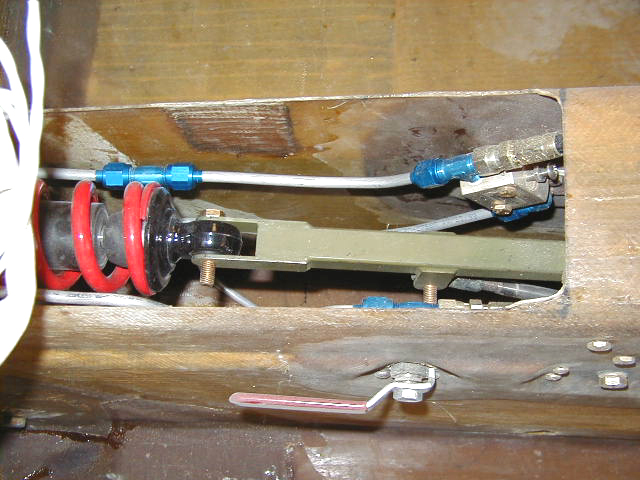

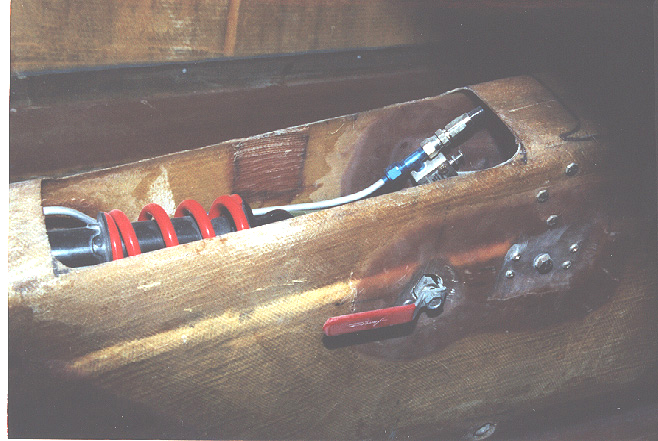

Hydraulic pump attached to the forward surface of the canard bulkhead. Closeup of hydraulic pump and plumbing. View of setup inside keel for nosegear. Dump valve seen at bottom of picture. Sequence valve located here rather than as described in plans for improved ease of access. Note sequence valve location. A cam attached to the nosegear arm will be installed which will activate the valve once the nosegear is completely raised, thus closing the nosegear doors.
Loading...
Loading...

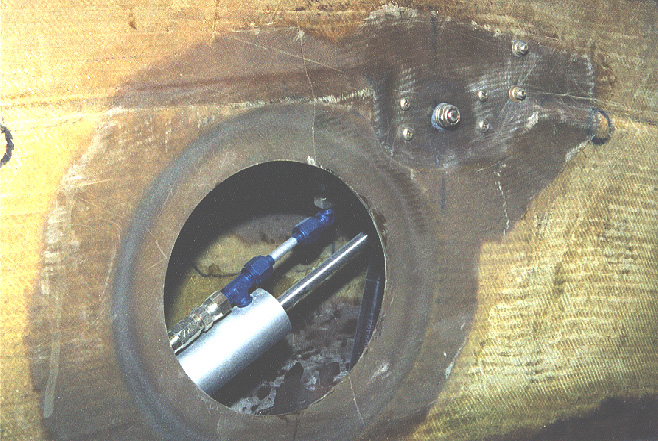

Nosegear hyraulic cylinder seen through access port in keel. Canard bulkhead to left of picture. Instrument panel to be attached at the marks on the keel seen at the top right of the photo.
