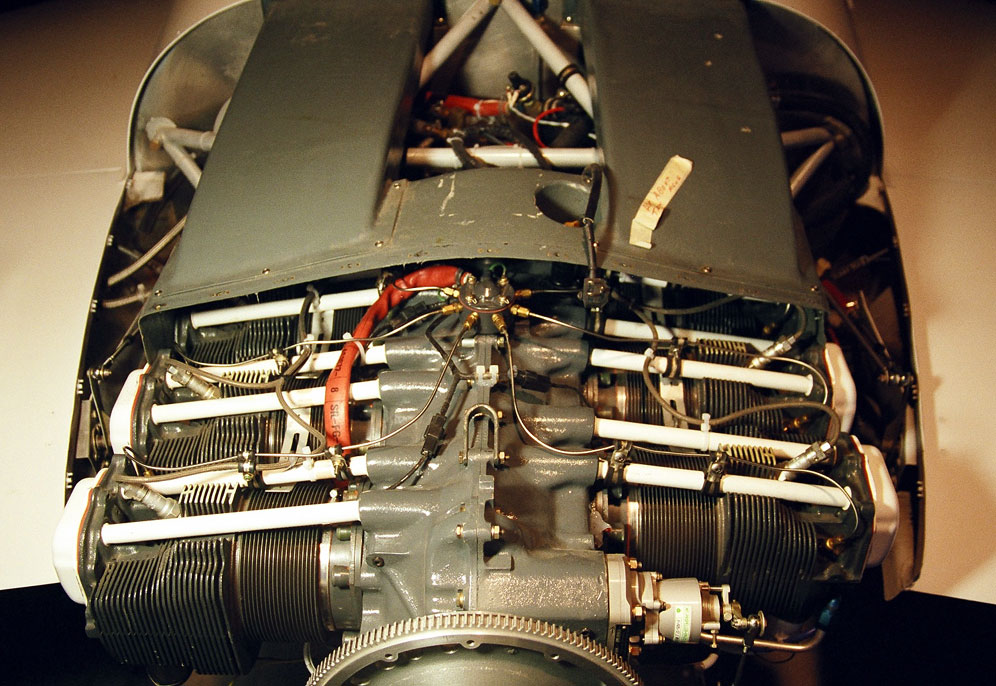

One last thing before the plenum is buttoned up. Adel clamps are placed in accordance to ADs to support the lines to the fuel injectors. All tiewraps holding the wires from the magneto are removed from the fuel spider lines and attached elsewhere. This will prevent any repetitive forces from vibration from wearing on a fule line and perhaps cracking it. The fuel line from the throttle body below is rerouted UNDERNEATH the fuel spider lines, again, to avoid damage to the more delicate fuel injector lines. This will be the final configuration in which we maintain the engine wiring and lines setup on top of the cylinders.
