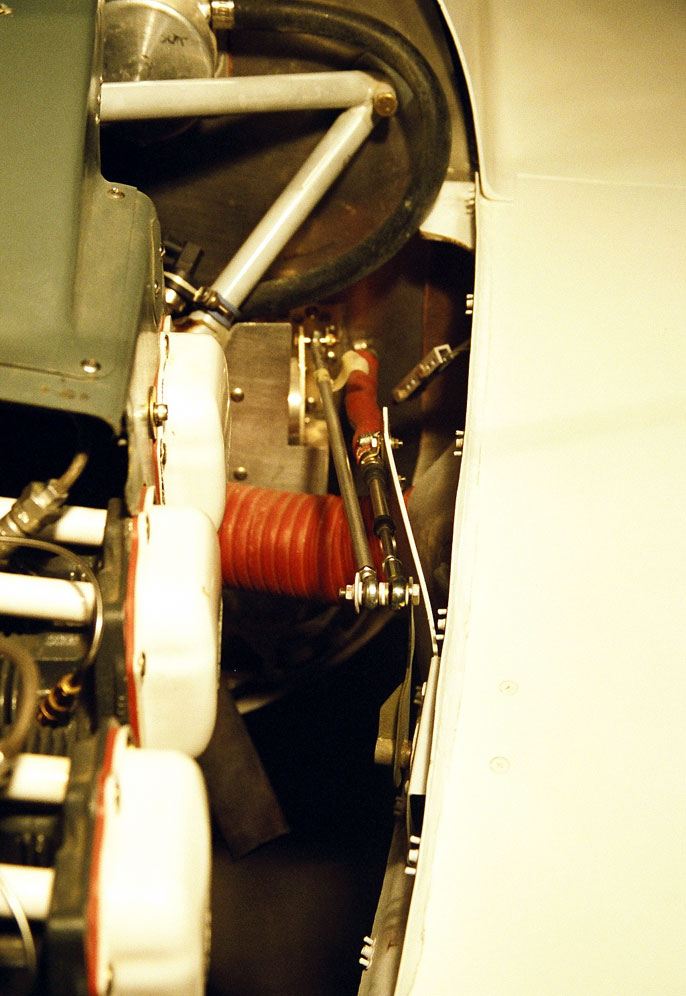

Copilot side aileron push-pull cable and bell crank assembly. The S-Tec roll servo is seen with its push rod parallelling the aileron cable. The enclosure serves double duty as motion stop and as a partial heat shield to protect the servo.
