2003 Maintenance and Annual Condition Inspection - PAGE 2

Previous Index Next

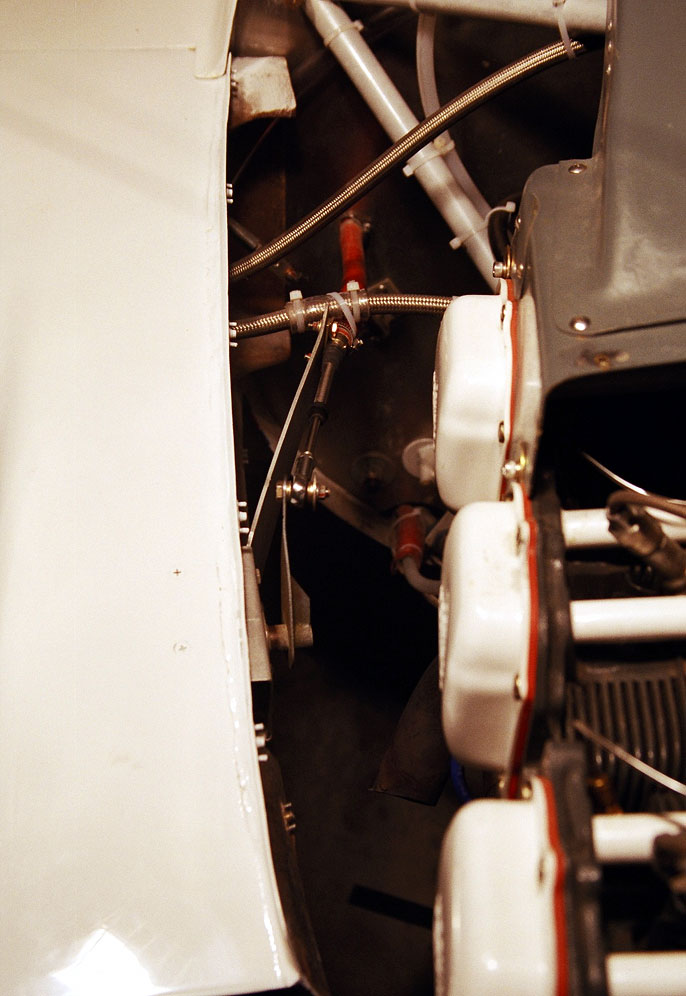

Pilot side aileron bellcrank. The steel braided lines go to and from the wingroot oil cooler. You can see one line resting on the bellcrank bracket. To prevent wearing ont he line it is wrapped with a thick segment of palastic tubing.
