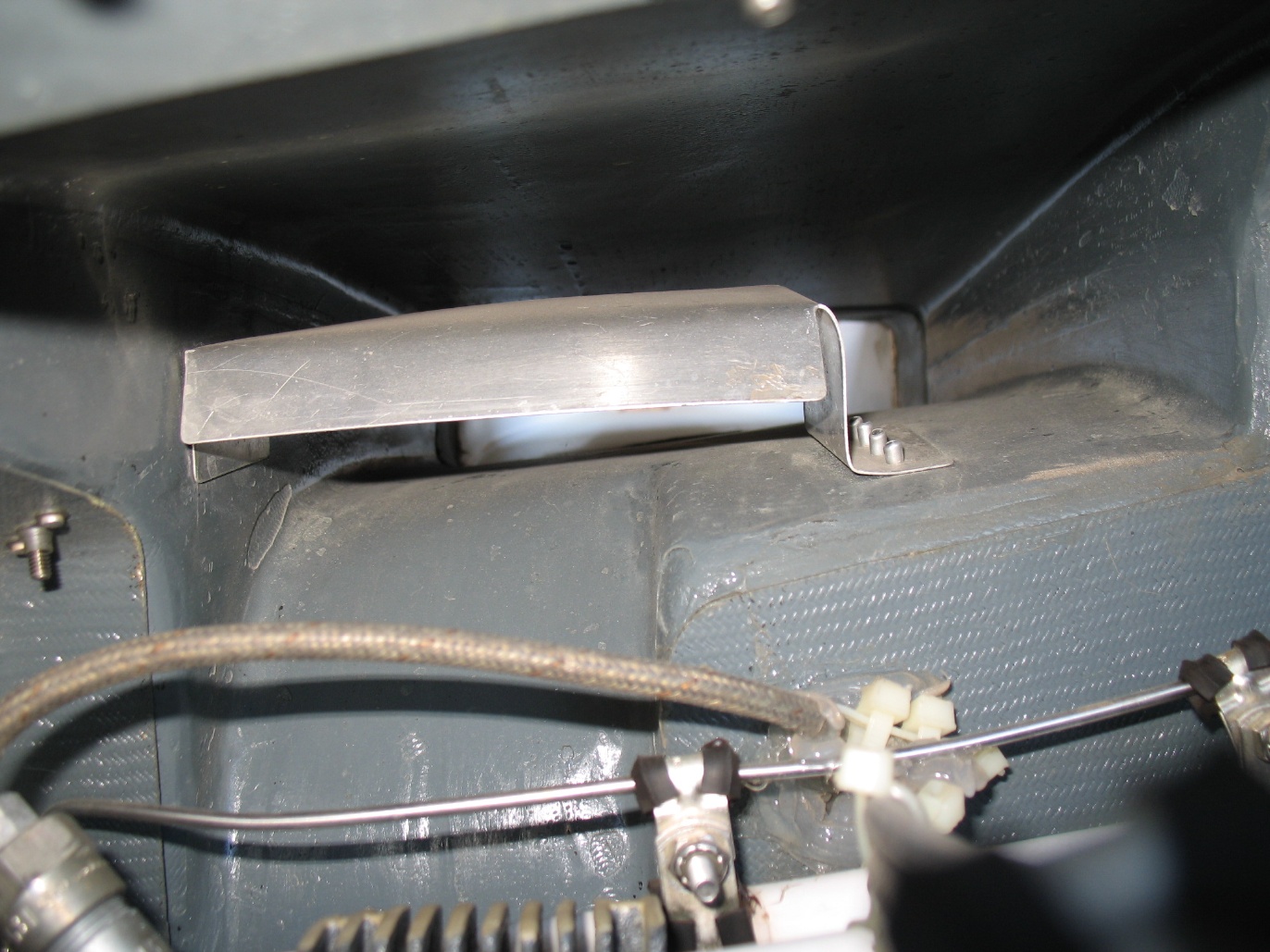

Looking into NACA ducts, pilot side, from the rear. Note deflector riveted in place to divert some of the stream to cool the cylinders closest to the firewall. THese two cylinders tend to run the hottest since air stream flow over and past them without the diverter.
