2006 Maintenance and Annual Condition Inspection

Previous Index Next

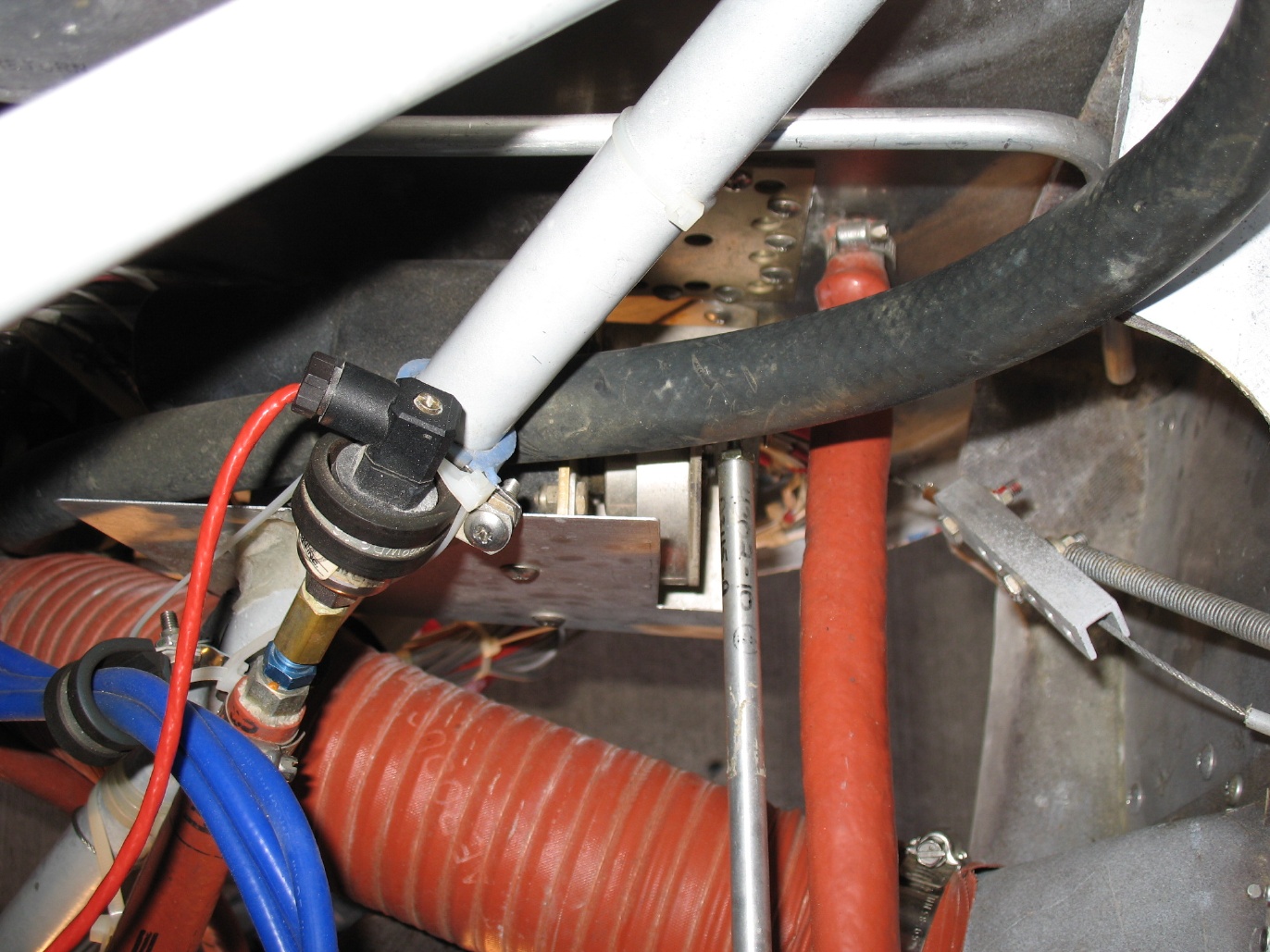

Copilot side detail. Blue electronic ignition cables at left corner. Fuel pressure sensor at left center. Large black tube is to oil air separator. Rudder cable at right center. Firesleeved aileron push-pull cable running vertically down center of screen.
